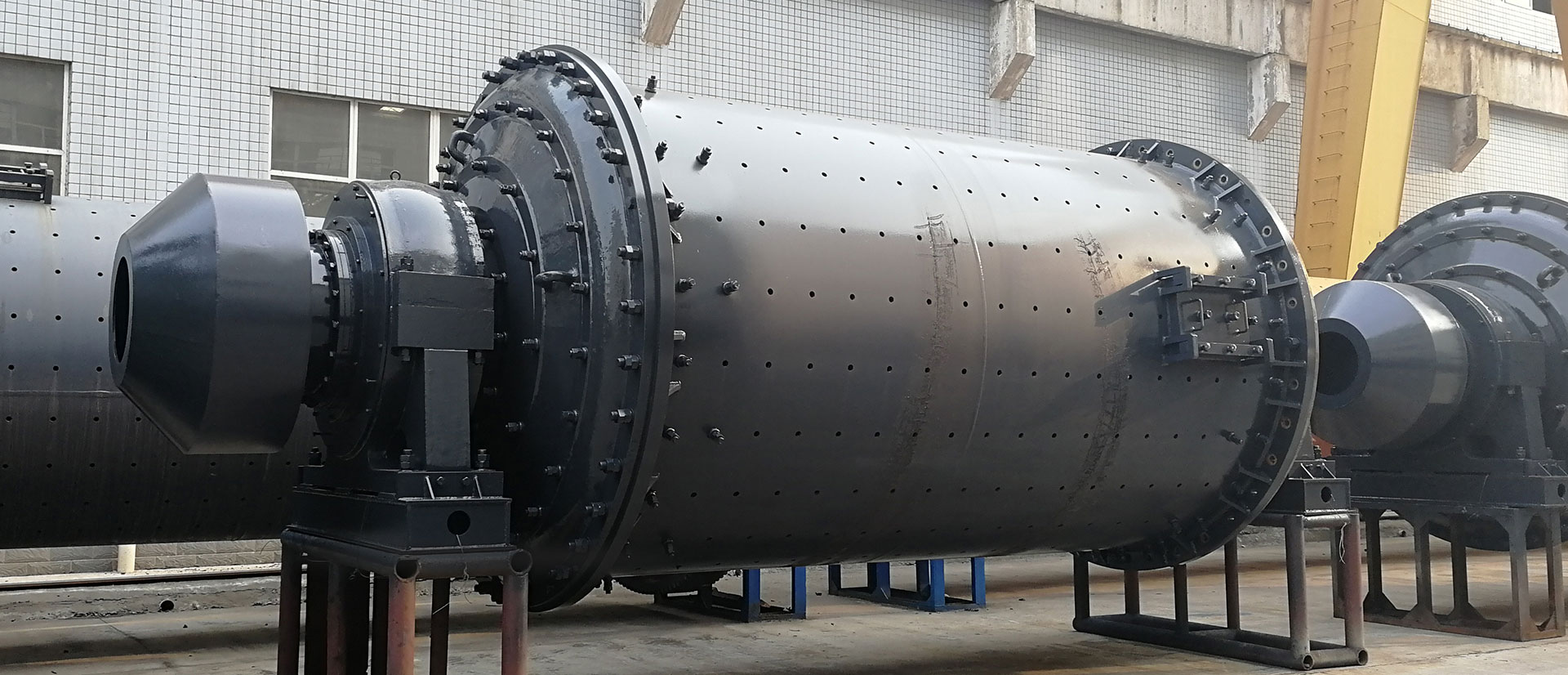

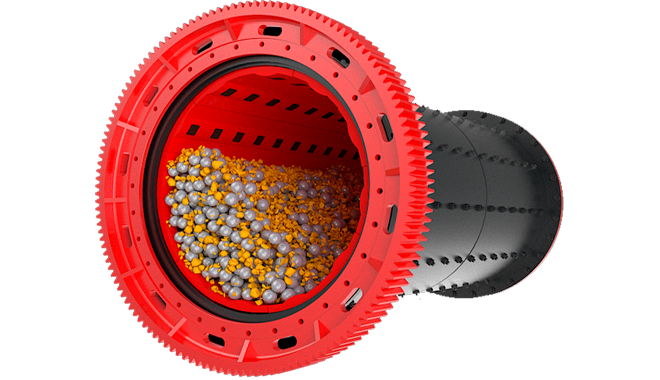

Ball Mill

Ball Mill

Production capacity: 1-615 t/h

Feeding size: ≤25 mm

Get Price Now

Handling Materials and Application

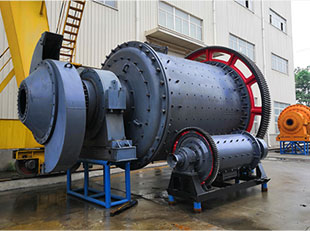

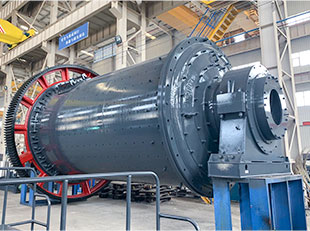

Ball mill is used for the grinding work of the crushed ore.According to the different materials and discharging methods, there are grate-type ball mill and overflow ball mill for choice. Wet-type and dry-type grinding are all available. The ball grinding machine is widely used in the environmental protection, building materials, beneficiation, ceramics, roads, railway and other industry fields for grinding ore, construction materials, construction waste, cement clinker and metal.

Advantages

Focusing on crushing machinery for more than 40 years, has provided professional project guidance, equipment production, production line construct, management and operation services for more than one million customers.

Ball Mill

Other Similar Products

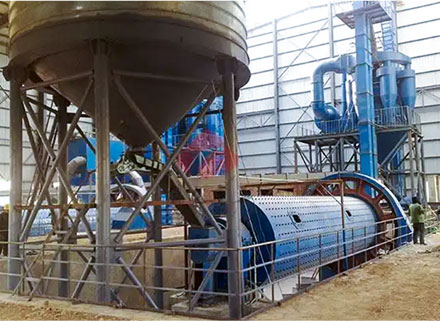

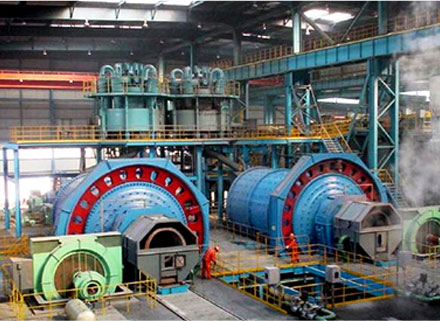

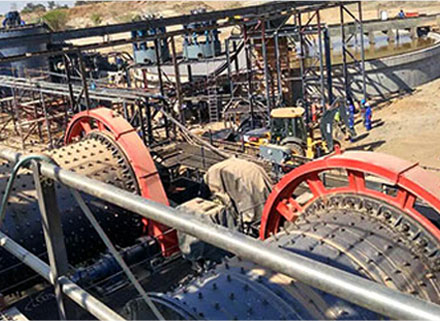

Project Case

Technical Data

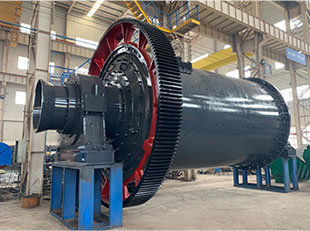

Ball Mill

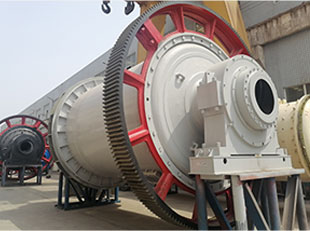

Ceramic Ball Mill

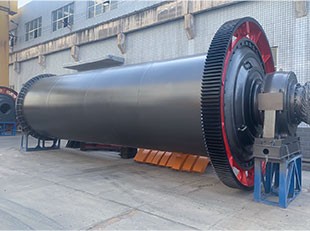

Rod Mill

Model Shell rotation speed
(r/min)		 Ball load
(t)		 Feeding size
(mm)		 Discharging size
(mm)		 Capacity
(t/h)		 Motor power
(kw)		 Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525
Model Feeding size
(mm)		 Capacity
(t/h)
Ф900×1800 <20 0.65-2
Ф900×3000 <20 1.1-3.5
Ф1200×2400 <25 1.5-4.8
Ф1200×3000 <25 1.6-5
Ф1200×4500 <25 1.6-5.8
Ф1500×3000 <25 2-5
Ф1500×4500 <25 3-6
Ф1500×5700 <25 3.5-6
Ф1830×3000 <25 4-10
Ф1830×4500 <25 4.5-12
Ф1830×6400 <25 6.5-15
Ф1830×7000 <25 7.5-17
Ф2100×3000 <25 6.5-36
Ф2100×4500 <25 8-43
Ф2100×7000 <25 12-48
Ф2200×4500 <25 9-45
Ф2200×6500 <25 14-26
Ф2200×7000 <25 15-28
Ф2200×7500 <25 15-30
Ф2400×3000 <25 7-50
Ф2400×4500 <25 8.5-60
Ф2700×4000 <25 22-80
Ф2700×4500 <25 26-90
Ф3200×4500 <25 As per process
conditions
Ф3600×4500 <25 As per process
conditions
Ф3600×6000 <25 As per process
conditions
Ф3600×8500 <25 45.8-256
Ф4000×5000 <25 45-208
Ф4000×6000 <25 65-248
Ф4000×6700 <25 75-252
Ф4500×6400 <25 84-306
Ф5030×6400 <25 98-386
Ф5030×8300 <25 118-500
Ф5500×8500 <25 148-615
Model Feeding capacity
（t/time）		 Shell rotation speed
（r/min）		 Reference motor
（kw）		 Liner material
600×700 0.05 50 2.2 Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials）
800×600 0.075 42 3
900×1200 0.2 38.5 5.5
1300×1500 0.5 33 7.5
1500×1800 1.2 28.5 11
1800×2000 1.5 24 15
2600×2800 5 16.5 37
3000×3800 10 14.5 57.2
3200×4600 15 13.5 75
Model Feeding
capacity
（t/time）		 Shell
rotation
speed
（r/min）
600×700 0.05 50
800×600 0.075 42
900×1200 0.2 38.5
1300×1500 0.5 33
1500×1800 1.2 28.5
1800×2000 1.5 24
2600×2800 5 16.5
3000×3800 10 14.5
3200×4600 15 13.5
Model
Shell Specifications （mm）
 Shell rotation speed
（r/min）		 Feeding size
(mm)		 Discharging size
(mm)		 Processing capacity
(t/h)		 Power
(kw)		 Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
Model Feeding
size
(mm)		 Processing
capacity
(t/h)
MBS0918 ≤25 0.62-3.2
MBS0924 ≤25 0.81-4.3
MBS1224 ≤25 1.1-4.9
MBS1530 ≤25 2.4-7.5
MBS1830 ≤25 4.8-11.6
MBS2130 ≤25 14-35
MBS2136 ≤25 19-43
MBS2430 ≤50 25-65
MBS2736 ≤50 32-86
MBS2740 ≤50 32-92
MBS3245 ≤50 64-180

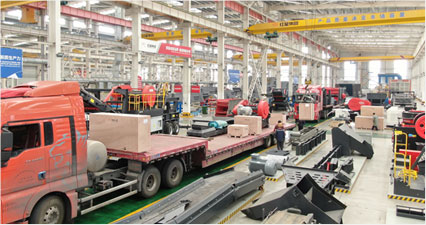

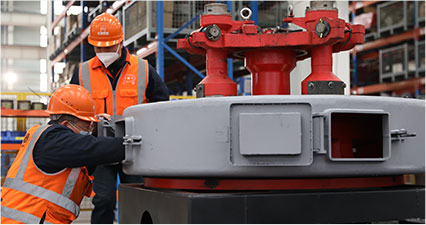

Full Process Tracking Service
